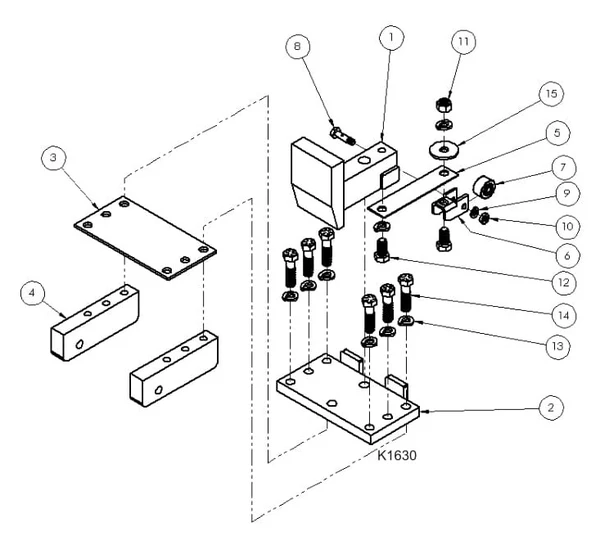

| Item | Part No. | Description |
|---|---|---|
| 1 | 583477 | Face, Push Plate, Black, WDMT |
| 2 | 583478 | Plate, Base, Push, Plate, WDMT |
| 3 | 575625 | Plate, Wear Plate, Kinetic |
| 4 | 575639 | Plate, Bearing, Push Plate |
| 5 | 583479 | Plate, Kickout, Push Plate |
| 6 | 575660 | Holder, Bearing, Push Plate |
| 7 | 575792 | Bearing, Roller, 0.25ID, 0.875OD, 4KLBS |
| 8 | 577215 | Bolt, Greaseable, 1/4-20, GR5 |
| 9 | 1985 | Washer, Lock, 1/4ID, Zinc-PLT STL |
| 10 | 577218 | Nut, Jam, 1/4-20 x 5/32, GR5 |
| 11 | 575805 | Nut, Hex, 3/8-16 UNC x 21/64, GR8 |
| 12 | 575807 | Bolt, Hex, 3/8-16 x 3/4, GR8 |
| 13 | 838 | Washer, Lock, 3/8ID, Zinc-PLT STL |
| 14 | 584306 | Bolt, Hex, 3/8-16 x 1-1/2, Grade 8 |
| 15 | 572214 | Washer, LRG, 3/8ID, 1-1/4OD, Zinc |

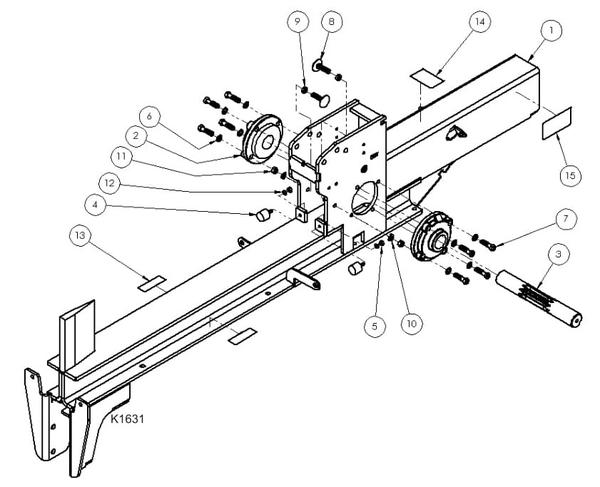

| Item | Part No. | Description |
|---|---|---|
| 1 | 583470 | Beam, Black w/ Decals, Kinetic |
| 2 | 573519 | Bearing, Pinion, Kinetic |
| 3 | 573539 | Pinion, Kinetic, Splitter |
| 4 | 573540 | Bumper, Kinetic, Splitter |
| 5 | 570789 | Nut, Hex, 1/4-20UNC x 7/32, GR5 |
| 6 | 3093 | 3/8IN Shakeproof Lockwasher |
| 7 | 584306 | Bolt, Hex, 3/8-16 x 1-1/2, Grade 8 |
| 8 | 577120 | Bolt, Elevator, 1-5/16DIA, 3/8-16, STL |
| 9 | 576018 | Nut, Jam, 3/8-16UNC x 7/32, GR5 |
| 10 | 838 | Washer, Lock, 3/8ID, Zinc-PLT STL |
| 11 | 570793 | Nut, Hex, 3/8-16UNC x 21/64, GR5 |
| 12 | 1985 | Washer, Lock, 1/4ID, Zinc-PLT STL |
| 13 | S52069100 | Decal, Pinch Point |
| 14 | 580386 | Decal, Shield, Warning, Kinetic |
| 15 | 1033176 | Serial Nameplate Decal |
| 16 | 584052 | decal, Chemical, Prop 65 |

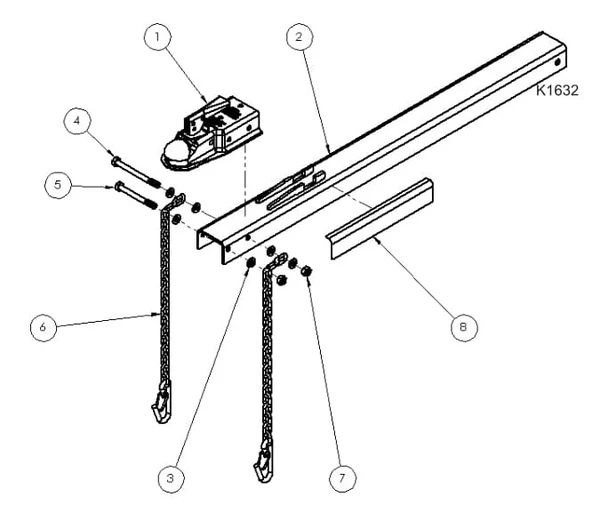

| Item | Part No. | Description |
|---|---|---|
| 1 | S40034600 | Splitter Part, 2 CH Coupler |
| 2 | 583486 | Tongue w/ Decals, Kinetic, ASM |
| 3 | 565286 | Washer, Flat, M10, zinc-PLT STL |
| 4 | 565276 | Bolt, Hex, M10 x 1.5 x 120, GR5 |
| 5 | 565275 | Bolt, Hex, M10 x 1/5 x 120, GR5 |
| 6 | S40032300 | 20 Link Chain w/ Hook |
| 7 | 584307 | Nut, Nylock, M10 x 1.5 x 10, CLS8 |
| 8 | S52062500 | Trilingual Decal, Tongue Warning |

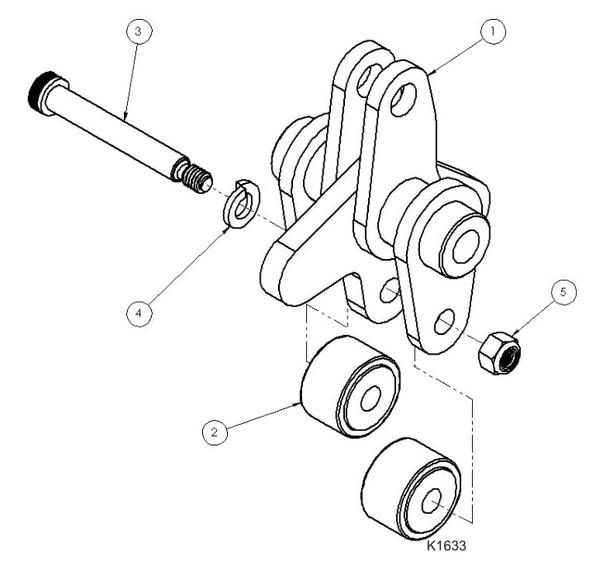

| Item | Part No. | Description |
|---|---|---|
| 1 | 583480 | Over-CNT, Linkage, Kinetic, SPLTR, WDMT |
| 2 | 575704 | Bearing, Roller, 3/8ID, 1-1/4OD |
| 3 | 576757 | Bolt, Shoulder, 3/8 x 2-1/2, STL |
| 4 | 838 | Washer, Lock, 3/8ID, Zinc-PLT STL |
| 5 | 574435 | Nut, Nylock, 5/16-18UNC x 11/32, GR5 |

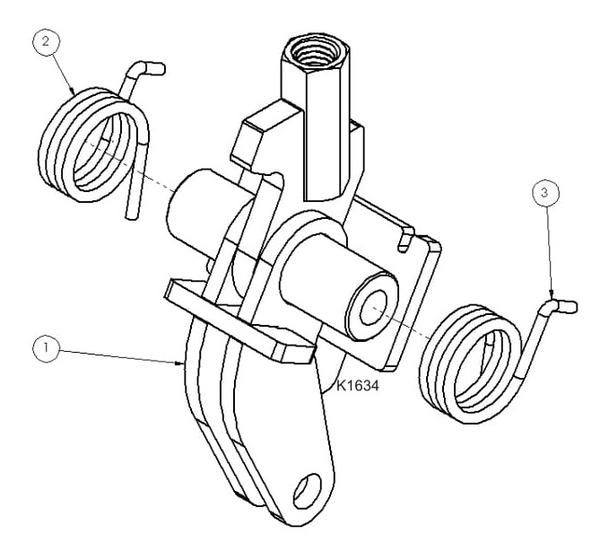

| Item | Part No. | Description |
|---|---|---|
| 1 | 583482 | Handle, Kinetic, Splitter, WDMT |
| 2 | 576031 | Spring, Torsion, Left, Handle |
| 3 | 576032 | Spring, Torsion, Right, Handle |

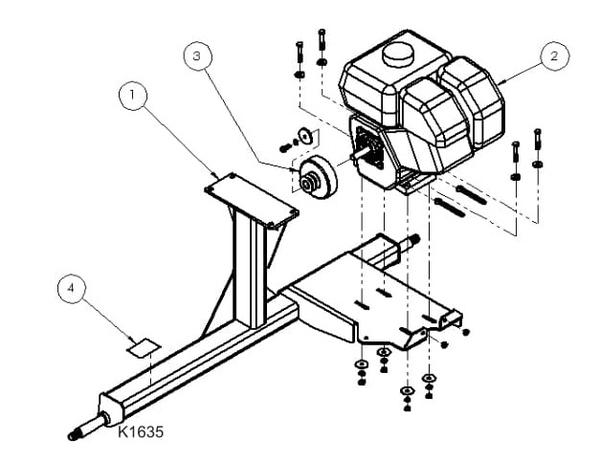

| Item | Part No. | Description |
|---|---|---|
| 1 | 583490 | Axle, 8IN, Kinetic, Splitter, WDMT |
| 2 | 581582 | Engine, Kohler, SH265 |
| 3 | 575523 | Clutch, Kinetic, Splittert |
| 4 | S52029800/a> | Decal, ASM in the USA |
| 5* | 583491 | Kit, Hardware, Engine, Kinetic |
*NOT INDICATED ON DRAWING
<
| Item | Part No. | Description | |
|---|---|---|---|
| 1 | 583481 | Bracket, Cover, Kinetic, ASM | |
| 2 | 3489 | Bolt, Hex, 1/2-13UNC x 3, Gr5 | |
| 3 | 573520 | Spring, Rack, Kinetic, Splitter | |
| 4 | 573528 | Rack, Kinetic, Splitter | |
| 5 | 584334 | Bolt, Hex, 3/8-16UNC x 2-1/4, GR5 | |
| 6 | 575704 | Bearing, Roller, 3/8ID, 1-1/4OD | |
| 7 | 583484 | Mid-Link, Kinetic, Splitter | |
| 8 | 576756 | Pin, 2-Grooved, 1/2DIA, 4-1/2LG | |
| 9 | 573548 | Bolt, Shoulder, 1/2 x 1, STL | 1 |
| 10 | 583485 | Safety Button, Black, Kinetic | |
| 11 | 575959 | Pin, Grooved, 1/2DIA, 3-1/2LG | |
| 12 | 576043 | Spring, Torsion, Lock, Handle | |
| 13 | 576754 | Pin, Grooved, 1/2DIA, 3-1/2LG | |
| 14 | 573524 | Spring, Return, kinetic, Splitter | |
| 15 | 2457 | 1/4 NC x 3/4 HHCS, GR5 | |
| 16 | 583332 | Nut, CNTLock, 1/4-20UNC x 7/32, Gr2 | |
| 17 | 572670 | Flywheel, Kinetic | |
| 18 | 574874 | Key Stock, 3/8 x 3/8 x 1-1/2 | |
| 19 | 581797 | Screw, Set, Sq, 5/16-18 x 1-1/2 | |
| 20 | 576755 | Clip E-Style, 1/2, Yellow-Zinc STL | |
| 21 | 583483 | Mount, Spring, Return, Kinetic | |
| 22 | 572230 | Nut, Nylock, 3/8-16UNC x 29/64, GR5 | |
| 23 | 574454 | Nut, Nylock, Flage, 3/8-16UNC, GR5 |
| Item | Part No. | Description |
|---|---|---|
| 1 | 583488 | Table, Kinetic, Speeco Red, WDMT |
| 2 | S400312B0 | Splitter Part, Tire w/ Cup, Seal, Bearing |
| 3 | 583468 | Shield, Speeco, Left w/ Decal, Kinetic |
| 4 | 583469 | Shield, Speeco Right w/ Decal, Kinetic |
| 5 | 583489 | Leg, Kinetic, Splitter |
| 6 | 583487 | Cover, Belt, w/ Decal, Kinetic |

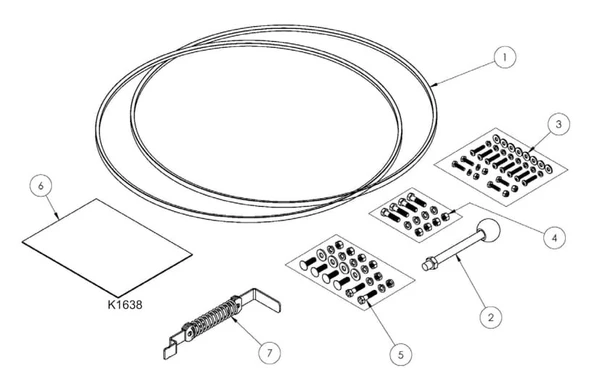

| Item | Part No. | Description |
|---|---|---|
| 1 | 575856 | Belt, Gates, A74 |
| 2 | 583466 | Handle, Upper, Black, Kinetic, ASM |
| 3 | 583467 | Kit, Hardware, Cover, Kinetic |
| 4 | 583492 | Kit, Hardware, Axle, Kinetic |
| 5 | 583539 | Kit, Hardware, Table, Kinetic |
| 6 | 581299 | Manual, Speeco, Splitter, Kinetic |
| 7 | 584561 | Gauge, Tension, Kinetic |
| 8* | 580382 | Hangtag, Speeco Kinetic |
| 9* | 580457 | Decal, features, Kinetic |
*NOT SHOWN
| Item | Part No. | Description |
|---|---|---|
| 1 | S071011C0 | 1/2′ x 4 1/4″ Swivel Hitch Pin |
| 2 | 576044 | Pin, Grooved, 1/2DIA, 3-3/4LG |
| 3 | 576755 | Clip, E-Style, 1/2, Yellow-Zinc STL |
| 4 | 584305 | Bolt, Hex, 1/2-13 x 3-3/4, GR5 |
| 5 | 573552 | Nut, Nylock, 1/2-13UNC x 19/32, GR5 |

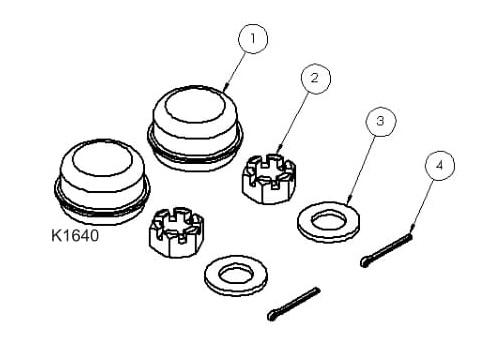

| Item | Part No. | Description |
|---|---|---|
| 1 | S40033200 | Cap, Hi Speed Tire and Wheel |
| 2 | 5849 | 3/4 NF Slotted Hex Nut |
| 3 | 2864 | 3/4 Type A NAR Plain Washer |
| 4 | 5241 | 1/8 x 1-1/4 Cotter Pin |

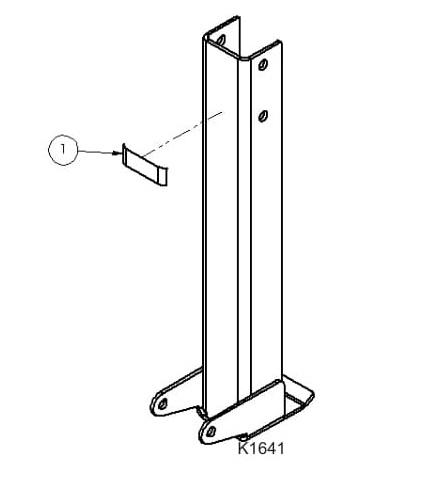

| Item | Part No. | Description |
|---|---|---|
| 1 | S52069100 | Decal, Pinch Point |
| Item | Part No. | Description |
|---|---|---|
| 1 | 581696 | Decal, Lock, Handle, Kinetic |
| 2 | 580388 | Decal, Handle, Kinetic |

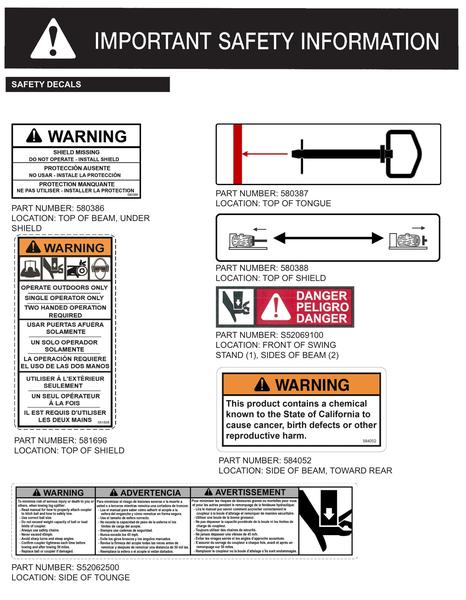

| Item | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 580386 | Decal, Warning | 1 |
| 2 | 581696 | Decal, Warning Outdoors | 1 |
| 3 | 580387 | Decal, Pin | 1 |
| 4 | 580388 | Decal, Top Shield | 1 |
| 5 | S52069100 | Decal, Danger | 1 |
| 6 | 584052 | Decal, Warning California | 1 |
| 7 | S52062500 | Decal, Warning Side of Tongue | 1 |
